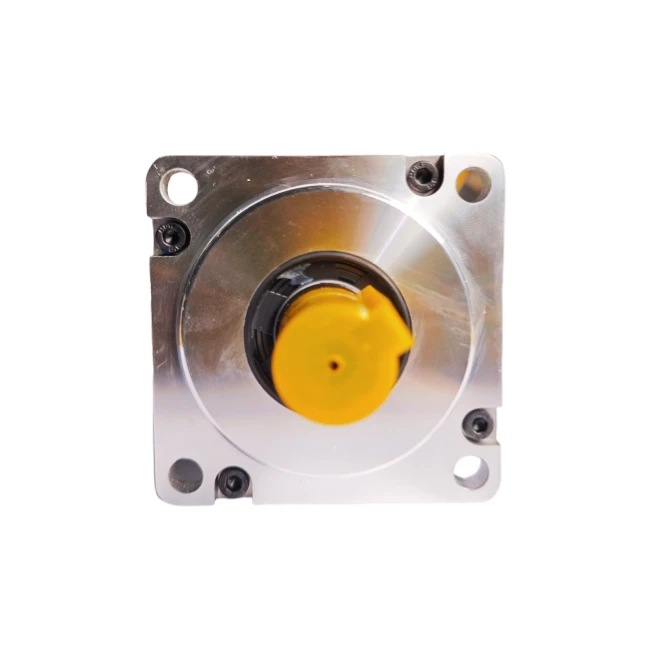

PMAC lub cev muaj zog
Lub hauv paus rau phau ntawv
PMAC lub cev muaj zog tau muaj npe rau lawv txoj kev ua haujlwm siab thiab ua kom nrawm nrawm, ua rau lawv tsim nyog rau cov ntawv thov kom cov lus teb thiab raug. Sab Nraud Cov Hlau Hlau Ruaj Khov Tsim Kev Ua Haujlwm Servo Tsav Tswj Kev Ruaj Ntseg Thaum Xa Tawm Cov Khoom Siv Muaj Zog. Nws zoo heev cov yam ntxwv zoo tshaj tawm cov yam ntxwv ua rau nws ua tshwj xeeb zoo nyob rau hauv cov kev taw qhia kev nyab xeeb.
1.High overload muaj peev xwm, muaj kev nrawm nrawm, tsawg kub hloov pauv, kev kub siab, nrog kub}} degree rau 50 degree.
2.Design tus qauv: iec {{60072-1}: 1991} {{}}}}} {{60034-14).
3.Motor Flange Qhov ntau thiab tsawg thiab): 40, 60, 80, 90, 130, 180, thiab lwm tus customized flange.
4.input voltage ntau: 12v -96 v.
5.Motor lub zog ntau: 100W txog 12kW.
6.Optional Cheebtsam: ua kom muaj cov enremental / agonection encoders, brakes, thiab lwm yam.
7.Customizable series: tawg-pov thawj motors, cov motors tsawg, siab IP kev tiv thaiv tus nqi ultrasonic siab.
8.OEM Customization muaj.
Parameter (specification)
|
Tsav Qauv |
Kev Ua Haujlwm Hluav Taws Xob (U) |
Rated zog (w) |
Rated Torque mn (nm) |
Rated ceev NN (RPM) |
Qhov ntau tshaj plaws NN (rpm) |
Rated tam sim no l (a) |
Ntau tshaj plaws tam sim no Torque m _ (nm) |
Tus lej ntau l (a) |
ntawm ncej tus ncej |
Inertia Kuv _} (kgcm²) |
Torque tas li k (NM / A) |
Rov qab lub zog electromotive ke (v / Krpm) |
|
Plt40 |
48VDC |
50 |
0.16 |
3000 |
3850 |
1.5 |
0.55 |
5.75 |
5 |
0.044 (0.05) |
0.132 |
8 |
|
48VDC |
100 |
0.32 |
3000 |
3850 |
2.9 |
1.1 |
11.5 |
5 |
0.074 (0.08) |
0.132 |
8 |
|
|
Plt60 |
48VDC |
200 |
0.64 |
3000 |
3850 |
5.8 |
1.92 |
18.2 |
5 |
0.26 (0.28) |
0.132 |
8 |
|
48VDC |
400 |
1.28 |
3000 |
3850 |
11.6 |
3.84 |
36.4 |
5 |
0.52 (0.54) |
0.132 |
8 |
|
|
48VDC |
600 |
1.91 |
3000 |
3850 |
17.4 |
5.73 |
54.5 |
5 |
0.72 (0.74) |
0.132 |
8 |
|
|
Plt ast80 |
48VDC |
750 |
2.4 |
3000 |
3850 |
19.6 |
7.2 |
62 |
5 |
1.33 (1.42) |
0.132 |
8 |
|
48VDC |
1000 |
3.18 |
3000 |
3850 |
27.5 |
9.55 |
83 |
5 |
1.81 (1.9) |
0.132 |
8 |
|
|
Plt130 |
48VDC |
1500 |
4.78 |
3000 |
3350 |
38.5 |
14.33 |
120 |
5 |
10 (11.3) |
0.14 |
8.6 |
|
48VDC |
2000 |
6.37 |
3000 |
3500 |
53 |
19.1 |
170 |
5 |
13.8 (15.1) |
0.136 |
8.2 |
|
|
48VDC |
2500 |
8 |
3000 |
3300 |
60 |
24 |
190 |
5 |
17.5 (18.8) |
0.147 |
8.9 |
|
|
48VDC |
3000 |
9.55 |
3000 |
3400 |
75 |
28.65 |
230 |
5 |
19.7 (21) |
0.141 |
8.5 |
|
|
Plt180 |
48VDC |
3000 |
14.33 |
2000 |
2150 |
74 |
43 |
230 |
5 |
42.5 |
0.227 |
13.71 |
|
48VDC |
4000 |
19.1 |
2000 |
2150 |
99 |
57.3 |
306 |
5 |
55 |
0.227 |
13.77 |
|
|
48VDC |
5000 |
23.88 |
2000 |
2150 |
125 |
71.64 |
383 |
5 |
63 |
0.22 |
13.33 |
|
|
48VDC |
6000 |
28.65 |
2000 |
2150 |
152 |
57.3 |
304 |
5 |
83 |
0.21 |
12.67 |
|
|
48VDC |
7500 |
35.81 |
2000 |
2150 |
180 |
71.62 |
360 |
5 |
115 |
0.223 |
13.5 |
Lub kaus tsho
Cov Khoom Siv PDF
Cov Khoom Tshawb Fawb 3D
PLT-A40P100S 30-48- c (3D) .zip
PLT-A40P100S 30-48- Z (3D) .zip
PLT-A60P200S 30-48- c (3D) .zip
PLT-A60P200S 30-48- Z (3D) .zip
PLT-A60P400S 30-48- c (3D) .zip
PLT-A80p750S 30-48- c (3D) .zip
PLT-A80p750S 30-48- z (3D) .zip
PLT-A80P1000s 30-48- c (3D) .zip
PLT-A80P1000s 30-48- z (3D) .zip
PLT-A130P1500S 30-48- c (3D) .zip
PLT-A130P1500S 30-48- z (3D) .zip
PLT-A130P2000S 30-48- c (3D) .zip
PLT-A130P2000S 30-48- z (3D) .zip
PLT-A130P2500S 30-48- c (3D) .zip
PLT-A130P2500S 30-48- z (3D) .zip
Plt-a130 nrhav 30-48- c (3D) .zip
Plt-a130 nrhav 30-48- z (3D) .zip
PLT-A180p5000s 20-80- c (3D) .zip
PLT-A180p5500S 15-48- c (3D) .zip
